Description
F-Tech Fox Fume Extraction package
Package includes:

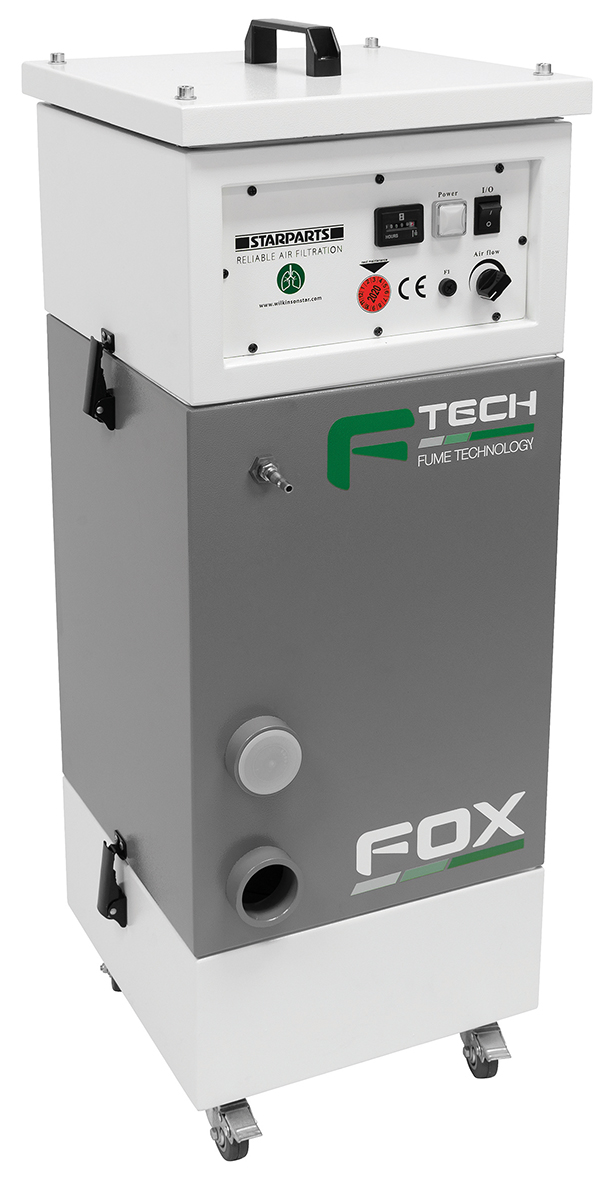

- F Tech Fox (110v OR 230v)

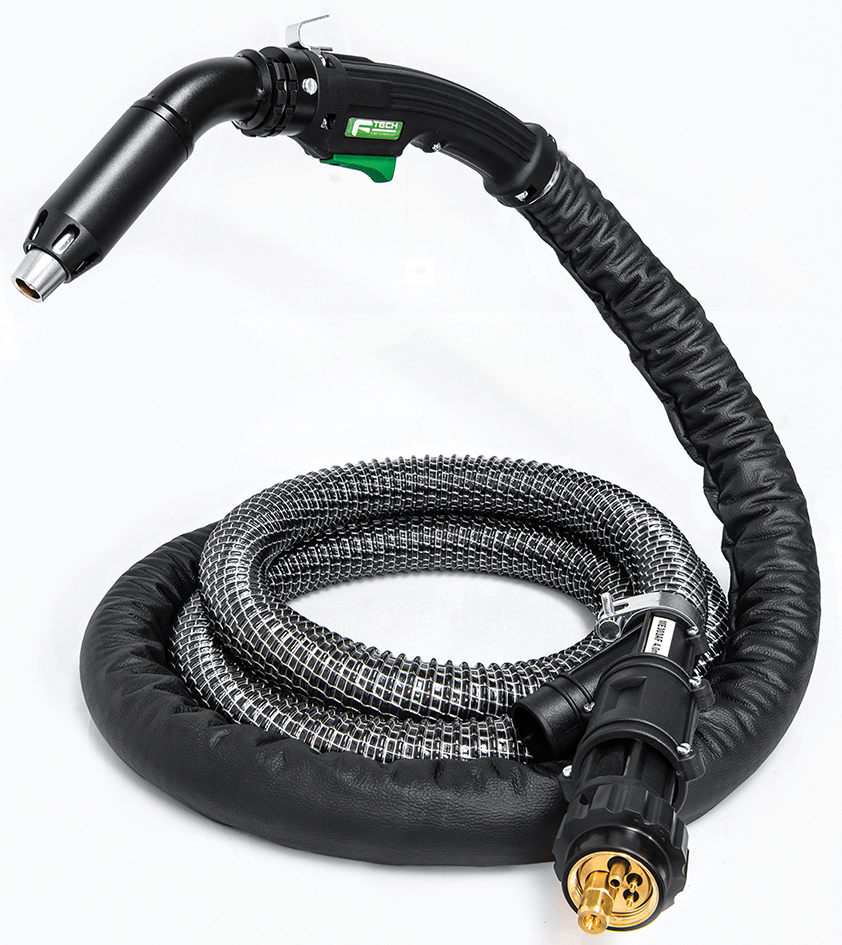

- FT-300 4E (300Amp 4Mtr air cooled torch)

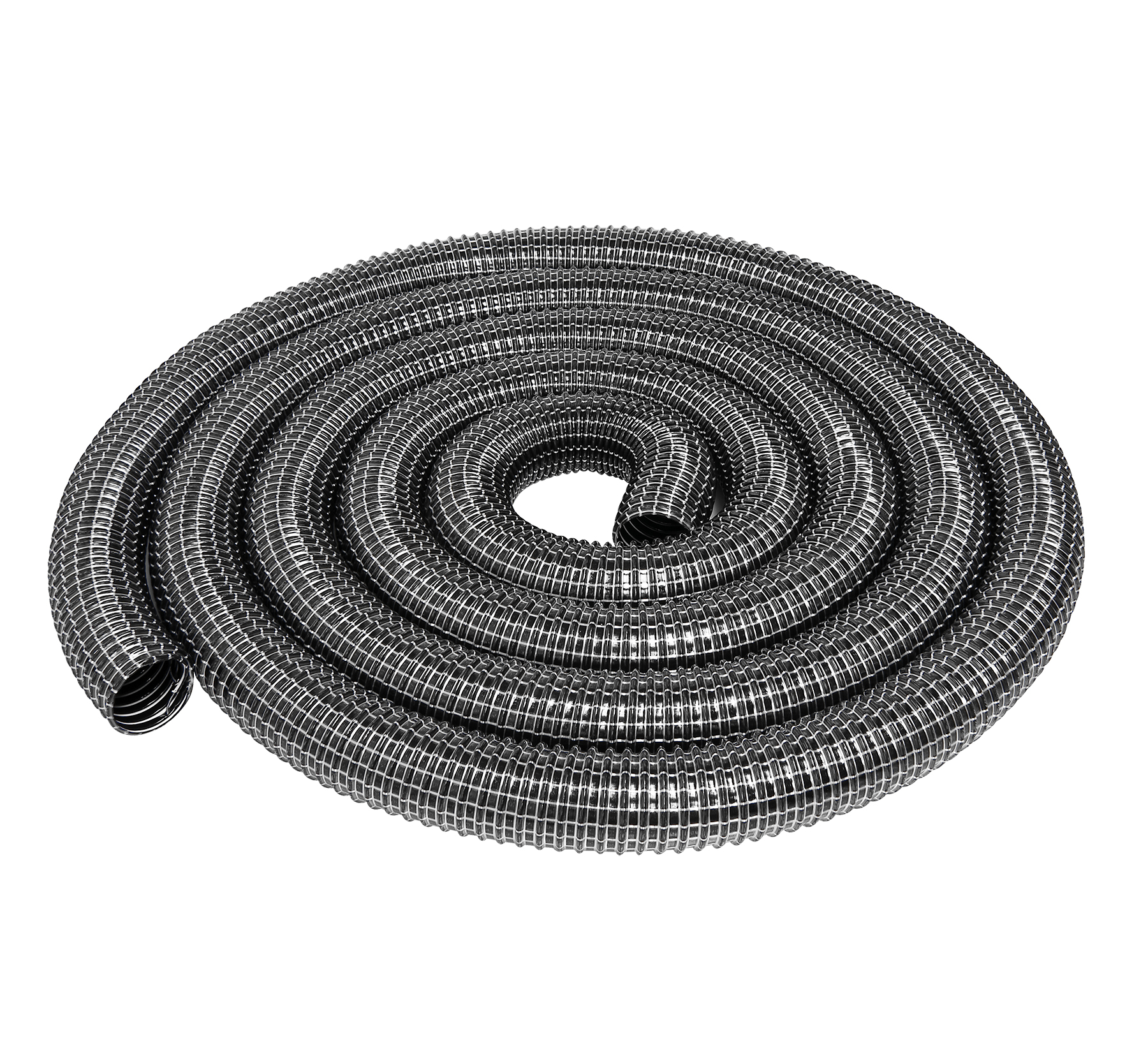

- 5Mtr Fume extraction hose

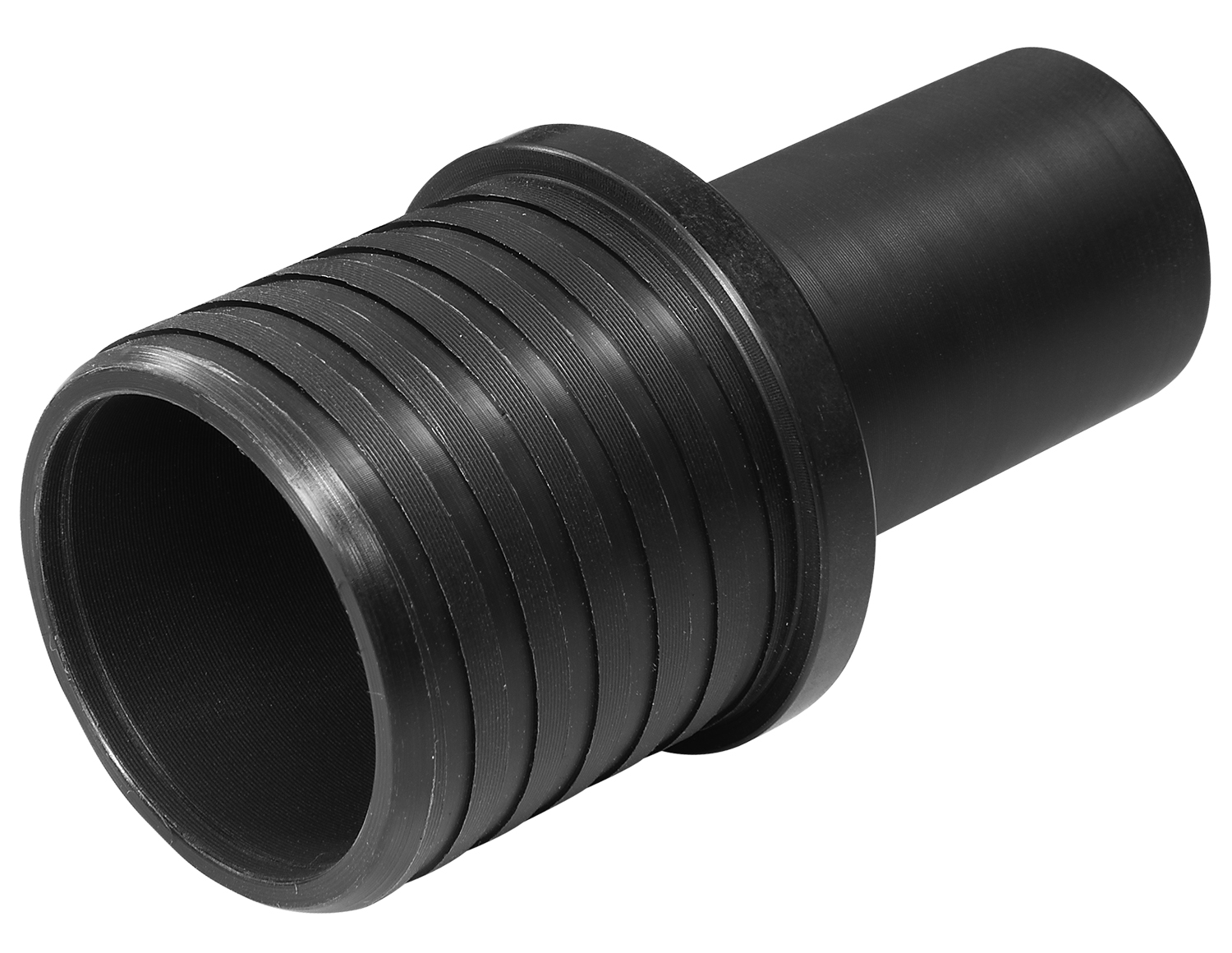

- 45mm to 32mm hose reducer

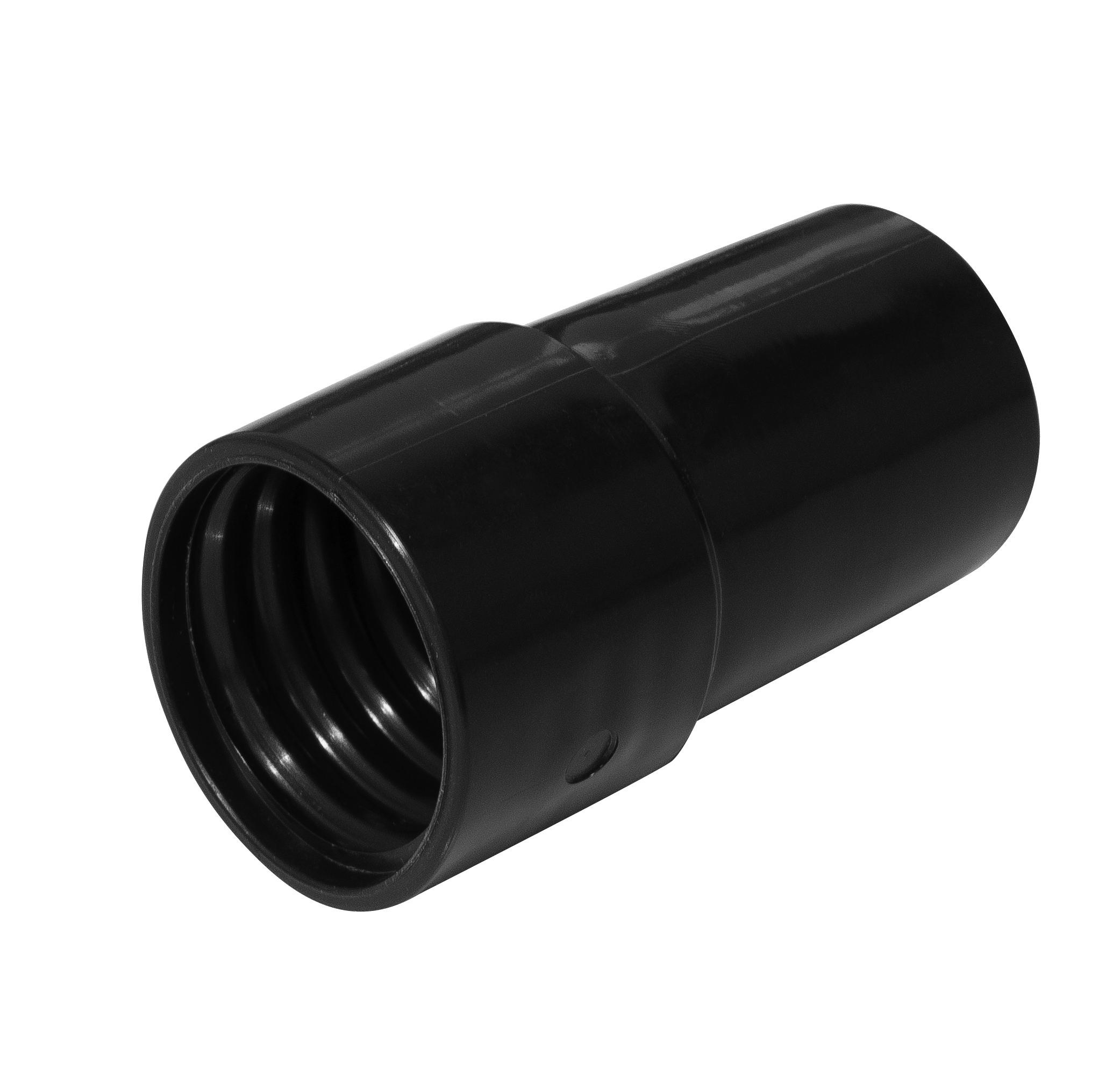

- 45mm PVC hose connector
Machine description
- Compact modular design
- Extremely portable – 4 sturdy, swivel castors for easy manoeuvrability in the workplace
- 110 or 230 volt models available
- Tandem motors offering pure efficiency in providing a vacuum of over 20,000 Pa to extract and filter harmful welding or grinding dust
- Will run 2 welding torches simultaneously
- Hour meter to check running time on equipment
- Fan speed control
- Featuring ePTFE robust European manufactured filters (H 13 certified) the best solution for extracting larger amounts of dust. These 2 robust filters within the unit offer a very long service life. Cleaning
is carried out by automatic nozzles controlled by the differential pressure measurement within the filter housing. ePTFE filters are certified by the German Institute for occupational therapy - Automatic cleaning for the filter cartridge and the mechanical filter layer
- Dust is collected in the dust tray and a mask/gloves are provided for handling the removal of the waste
Technical data:
- Mains supply: 110V OR 230V 50/60 Hz
- Motor power (Kw): 2 x 0.8
- Noise level (dBa): 78
- Filter efficiency – 99.5% E12 Classification
- Flow rate pressure – 340m3/h
- Dimensions (mm): 300 x 300 x 845
- Weight (kg): 35
*5 year warranty on machine subject to registration / *1 year warranty
Supplied with 32amp 110/230v plug
