Description

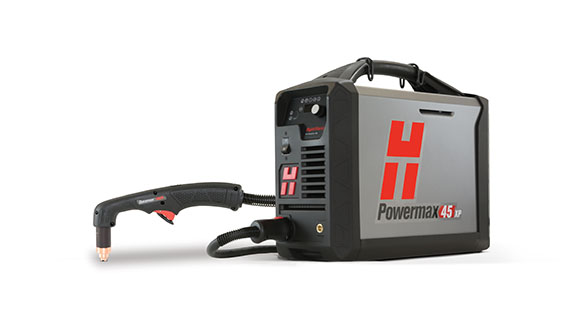

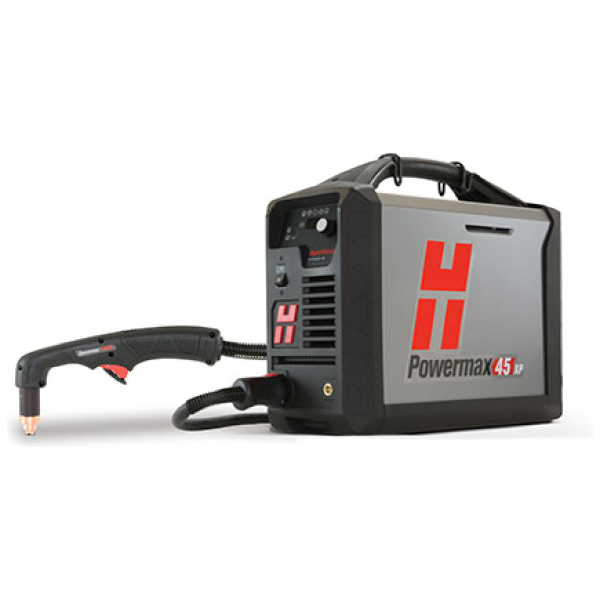

Hypertherm Powermax 45 XP Plasma Cutter
Package includes:
- Powermax 45 XP CE/CCC Power Supply 230v 1ph / 400v 3ph
- Hypertherm 6.1m (20ft) Duramax Lock 75° Plasma Hand Torch without Consumables
- Hypertherm 7.6m (25ft) 45A Work Lead with Hand Clamp
- Consumable Starter Kit Powermax45 XP Handheld
- Operator and safety manuals
Options – Available in either 3 phase (415v) or Single phase (230v)
Machine description
Hypertherm’s best selling plasma system has just got better. Meet the Powermax 45 XP, the newest member of Hypertherm’s most popular line of plasma systems. The Powermax 45 XP replaces its predecessor and delivers an increased cut capacity – up to 16mm (5/8″) metal, as well as faster cut speeds, and gas adjustment for quick, simple setup and operation. Plasma cutting efficiency is 11% better than its predecessor, enabling you to cut more steel with less power, in less time, while also being 14% lighter. The new Duramax Lock torches are available in handheld and mechanised configurations, along with enhanced gouging and new metal marking capabilities.
Features include
Easy-to-use with versatile design
• Small size and light weight provides exceptional portability for
a 16 mm (5/8″) rated cutting system.
• Handheld and mechanized usage with CNC interface and
FastConnect™ torch connection.
• Patented drag-cutting technology makes it easy to use – even for
first-time operators.
• Tackle different jobs with multiple, easy-to-use torch and
consumable styles.
• No need to change the air pressure. Smart Sense™ technology
ensures that it is always correctly set.
• Mark, score and make precision gouges with new low amp process.
Maximum productivity
• Finish jobs faster with cut speeds one and a half times greater than
oxyfuel on 6 mm (1/4″) mild steel.
• Spend less time on grinding and edge preparation due to superior
cut and gouge quality.
• Fast change out of consumables using the new torch disable
switch feature.
Rugged and reliable
• Duramax® Lock torches are designed for high-impact and heat
resistance.
• SpringStart™ technology ensures consistent starting and a more
reliable torch.
• Hypertherm Certified™ reliability ensures performance in the most
demanding environment.
Technical data:
- Mains supply: 110–240 V, 1-PH, 50/60 Hz & 400 V, 3-PH, 50–60 Hz
- Input power (kVA): 12.5
- Amperage Range (Amps): 10A – 45A
- Duty Cycle:
- 50% @ 45 A, 230 V, 1-PH – 100% @ 32 A, 230 V, 1-PH
- 50% @ 45 A, 480 V, 3-PH – 100% @ 32 A, 480 V, 3-PH
- Protection/Insulation Class: IP23S
- Dimensions (mm): 442 x 173 x 357
- Weight (kg): 15
*3 year warranty on power source
*1 year warranty on torch
Supplied with 16amp 230v plug for single phase option
Supplied with 32amp 415v plug for three phase option
Data Sheet
