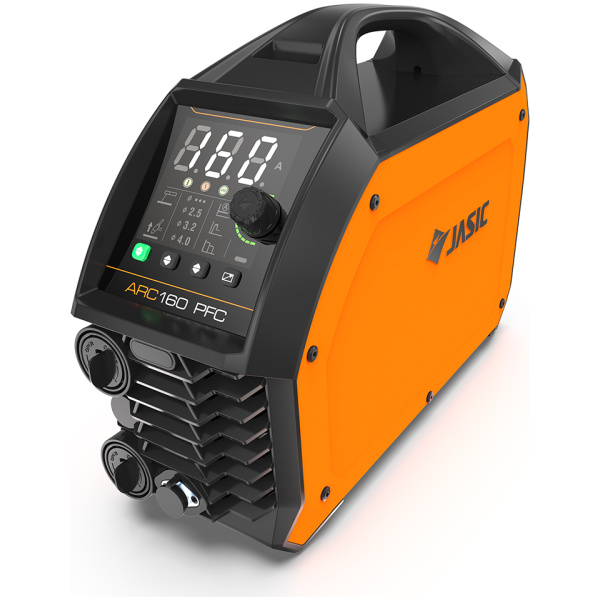

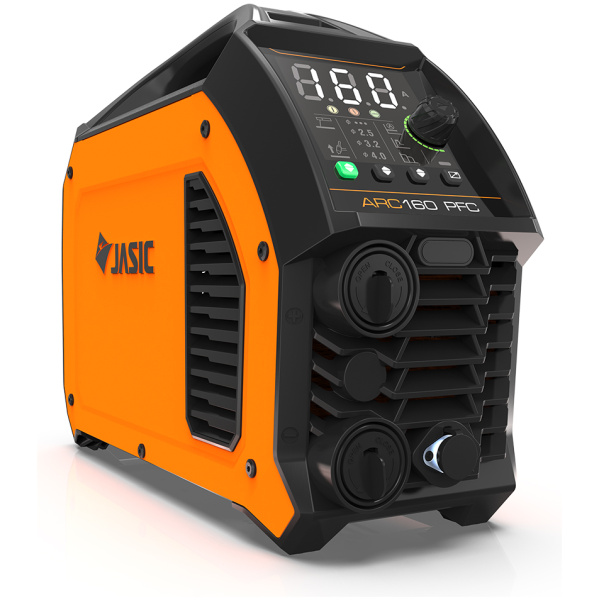

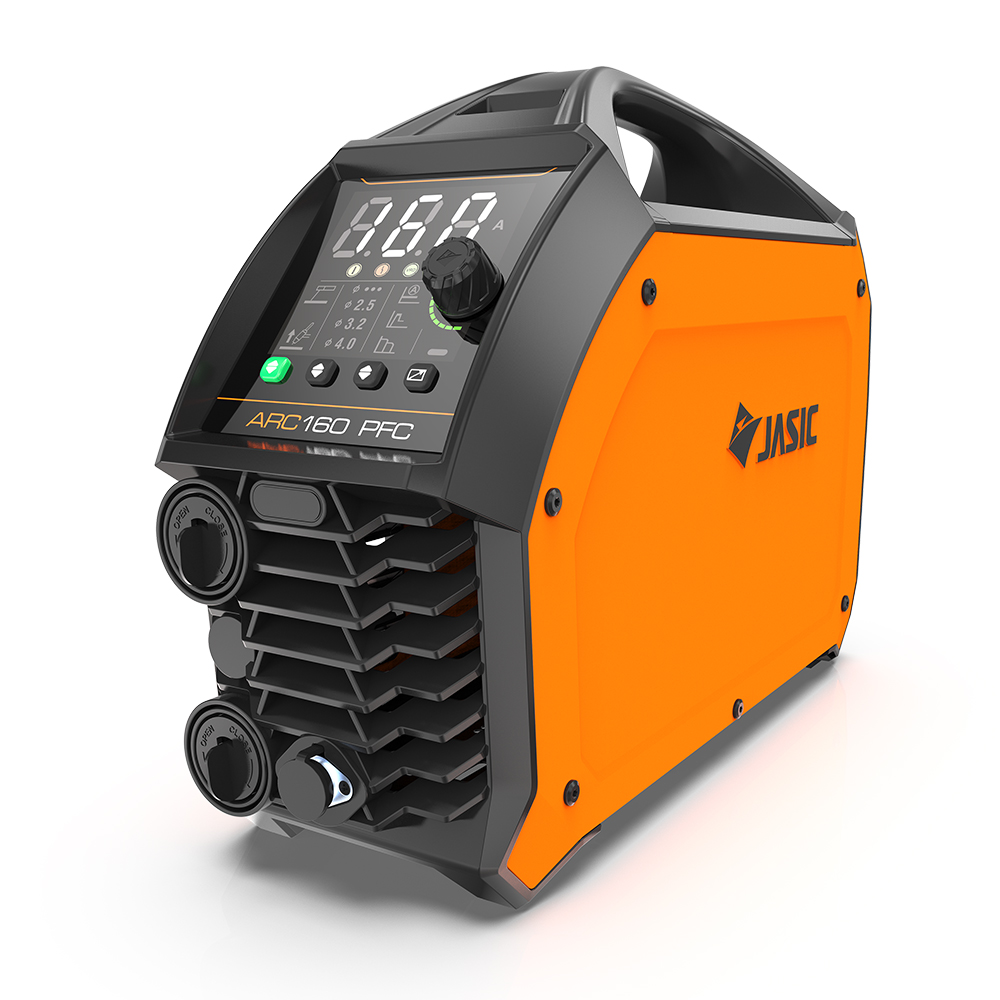

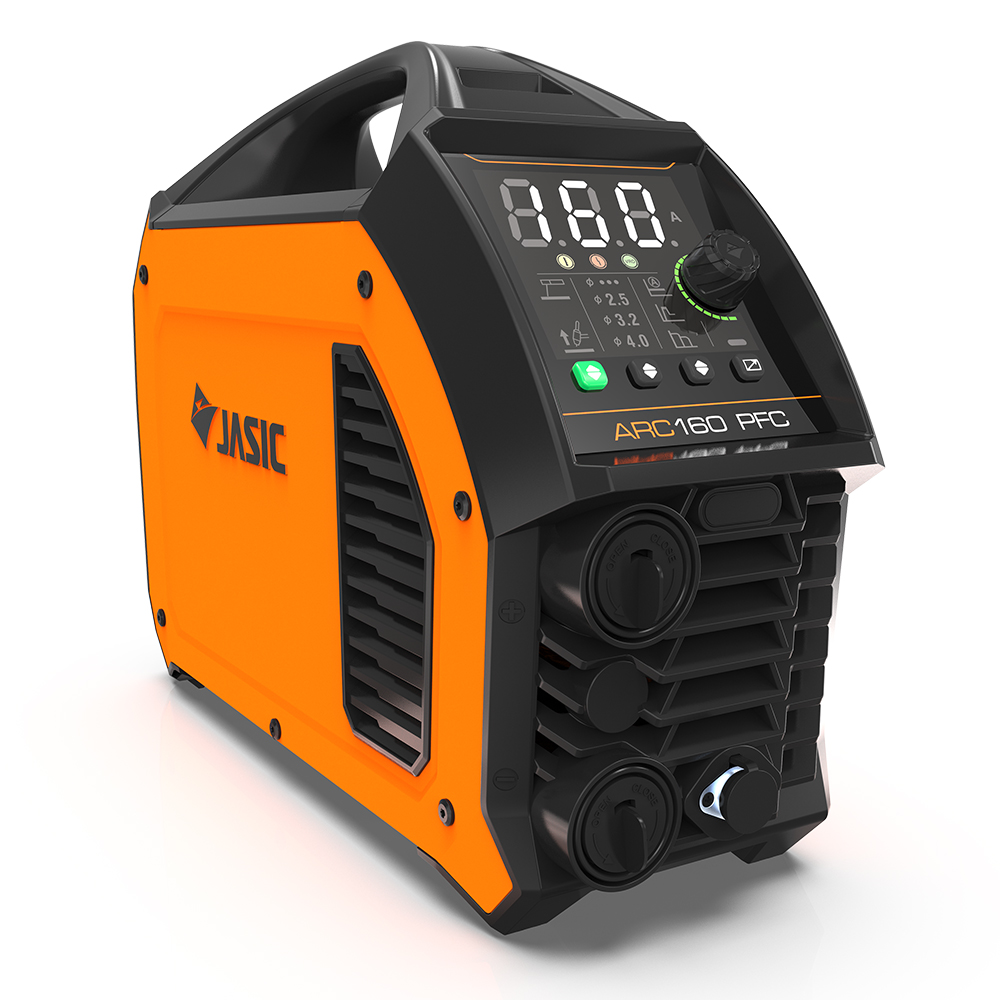

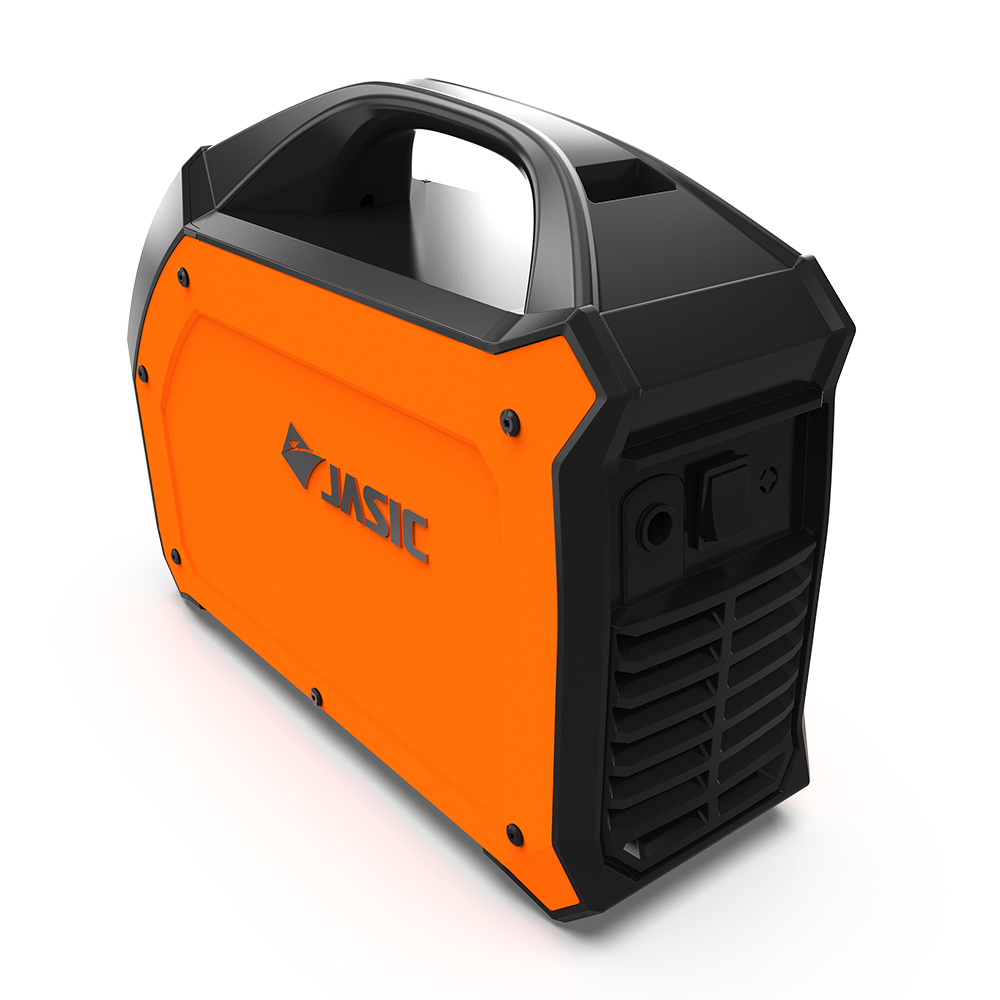

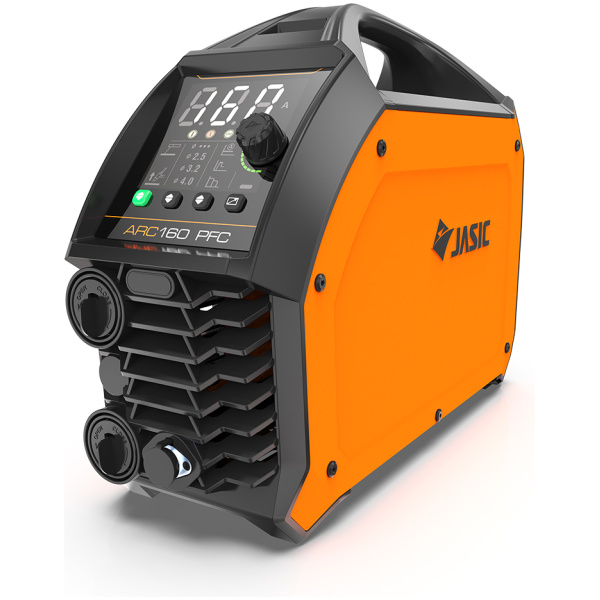

Jasic Evo Arc 160 PFC

Jasic Evo Arc 160 PFC

Jasic Evo Arc 160 PFC Data Sheet

Package includes:

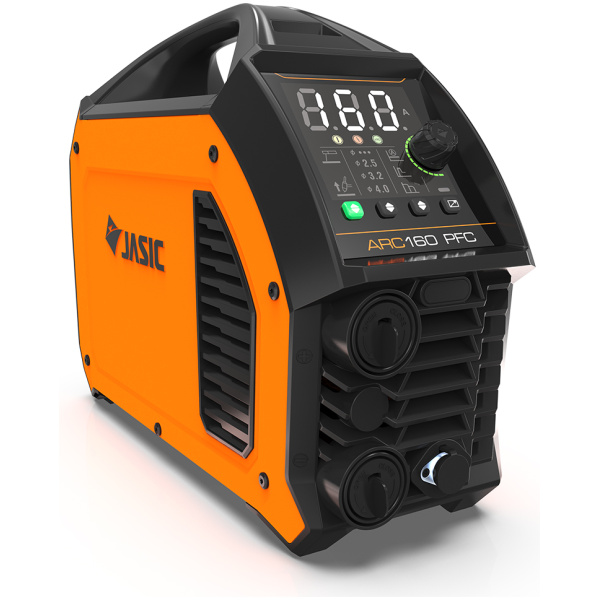

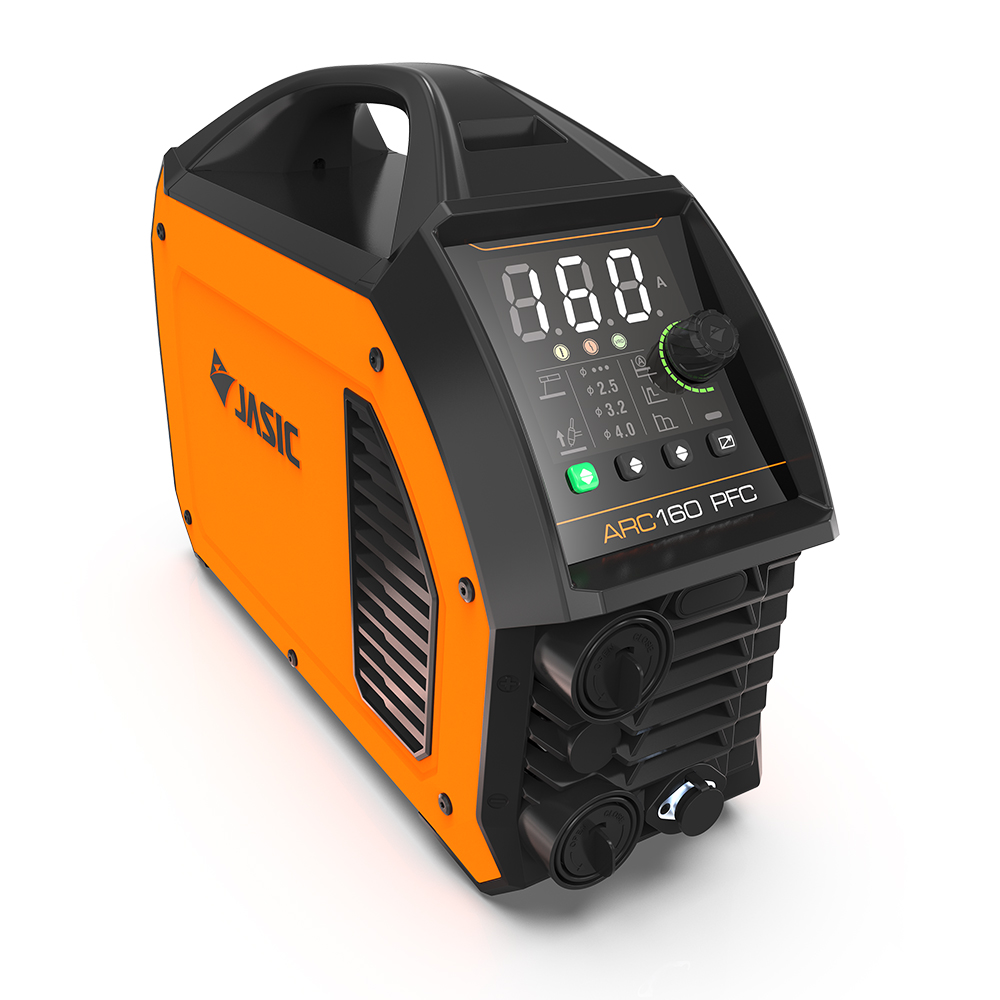

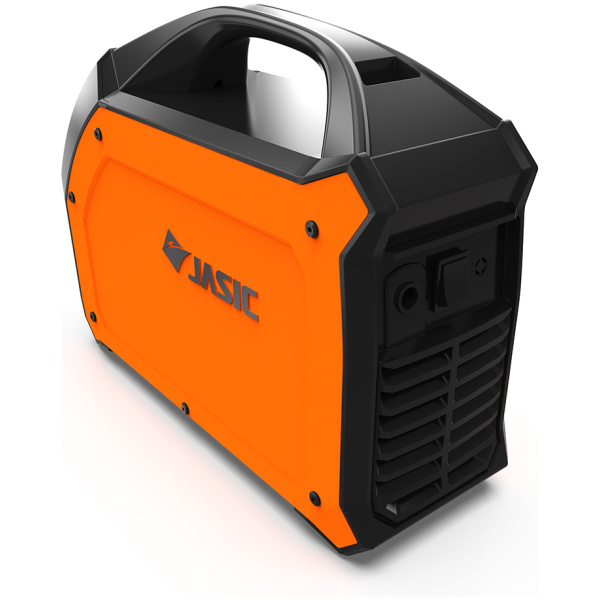

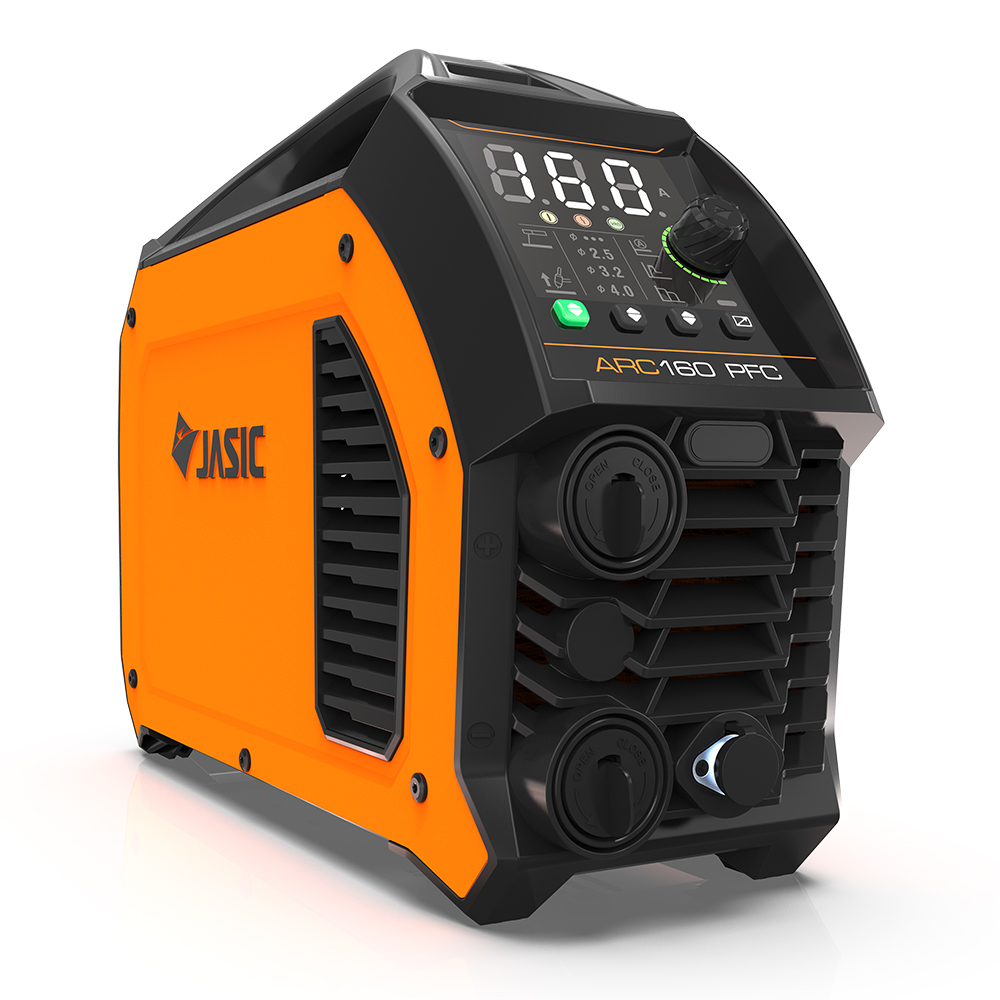

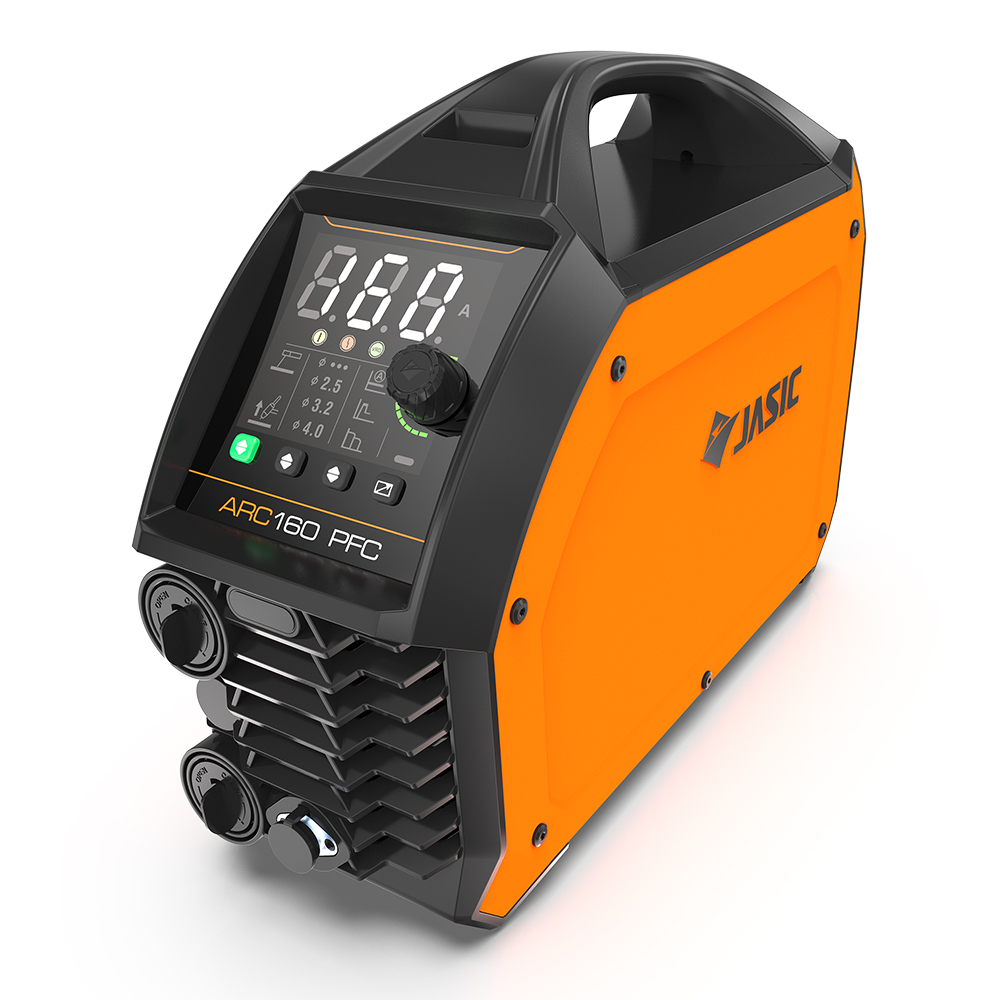

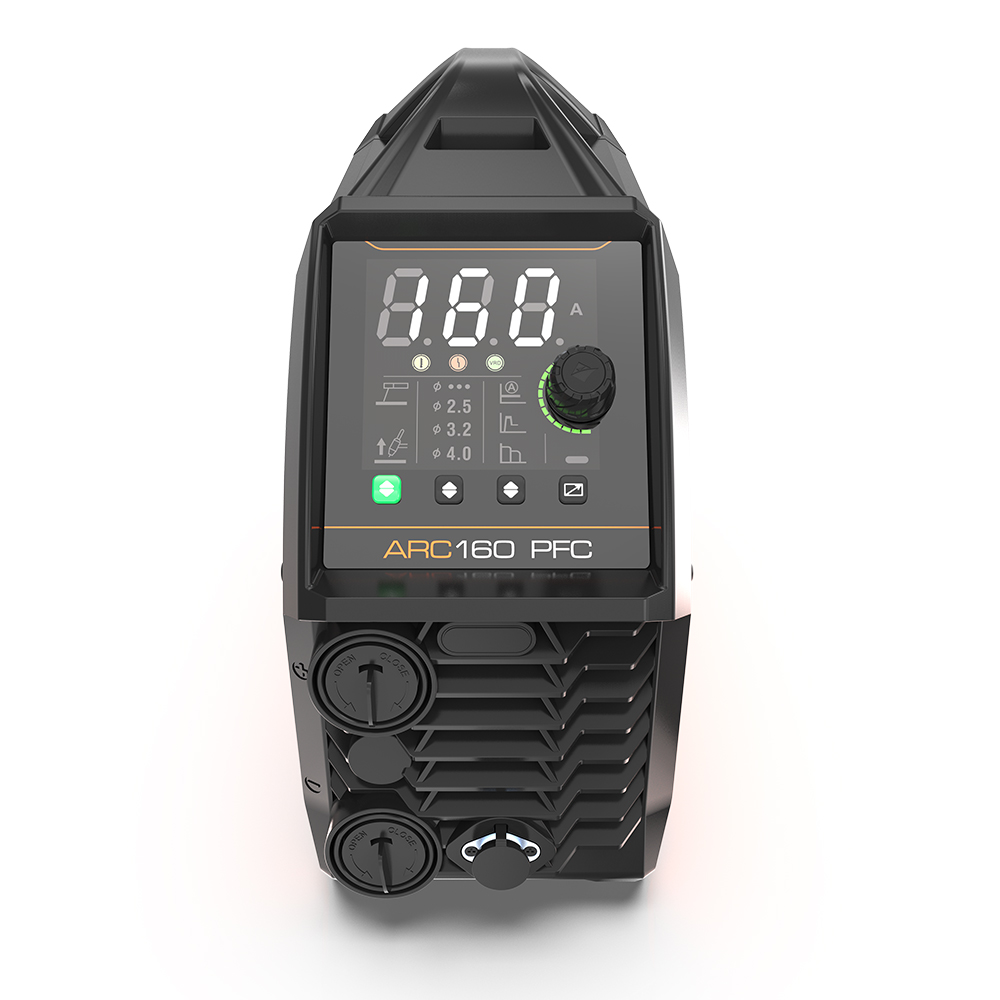

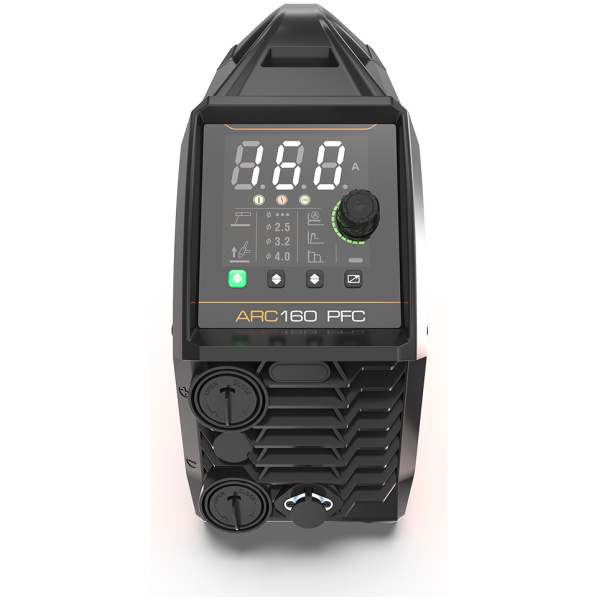

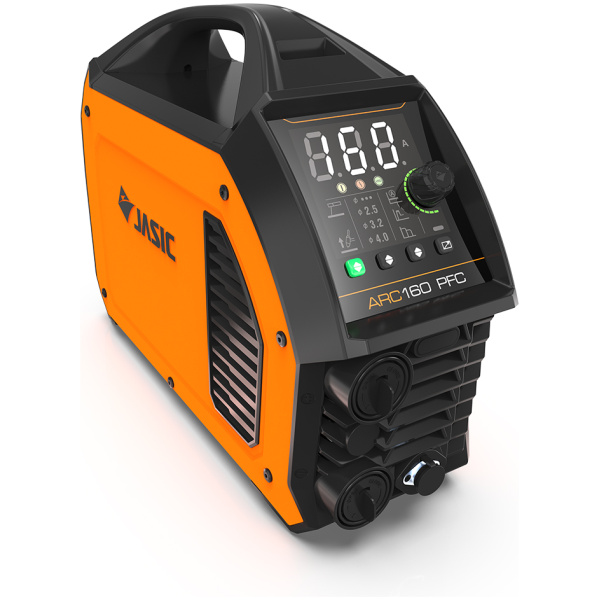

• Jasic Evo Arc 160 inverter
• Electrode and earth return lead
• Machine & Lead protective case

Features Include:

• Rugged, ergonomic design
• ClearVision technology
• Intelligent synergic control
• Smart Lift TIG
• Adaptable wide voltage range
• Quick factory reset
• Anti-stick, adjustable hot start and arc force
• Dedicated wireless remote control (optional)
• Remote control receiver module (optional)
• Power factor correction (PFC), generator friendly
• ABAP: Active Balancing Air Passage
• Fan on demand
• Voltage Reduction Device (VRD)
• Key power electronic component protection
• Overcurrent and overheat protection
• Complete with protective case and MMA leads

Technical data:

• Mains supply: 95-265V
• Amperage Range (Amps): 20A – 110A (110v) 20A – 160A (230v)
• Duty Cycle: 160Amps @ 25%
• Protection/Insulation Class: IP23S
• Dimensions (mm): 413 x 150 x 311
• Weight (kg): 7.2

*5 Year warranty
