Description

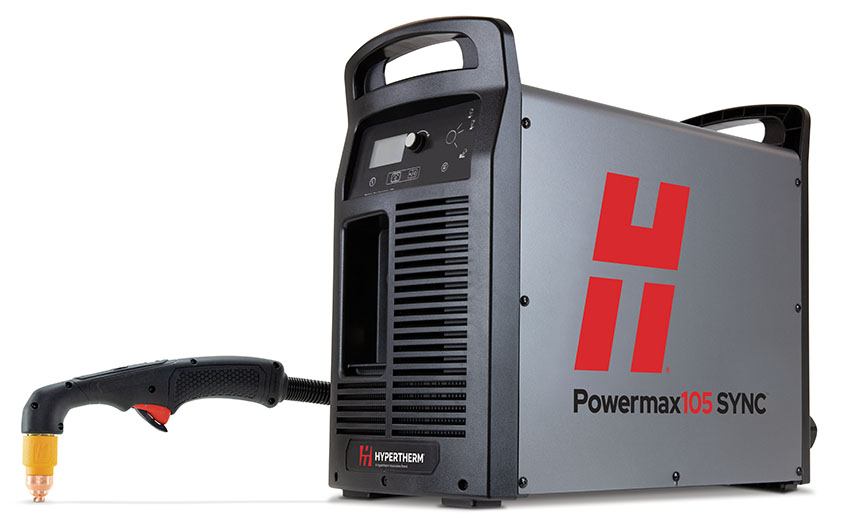

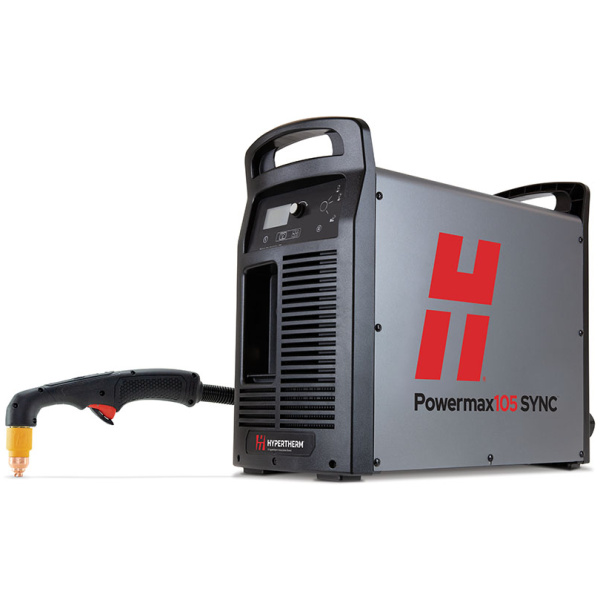

Hypertherm Powermax 105 SYNC Plasma Cutter
Package includes:
- Hypertherm Powermax 105 SYNC Power Source. 3 Ph 400v CE
- Hypertherm SmartSYNC 75 Degree Hand Torch OR 180degree machine torch (package dependant)
- Powermax 105 Work Cable
- Hypertherm Filter cover (cover and air filtration kit)

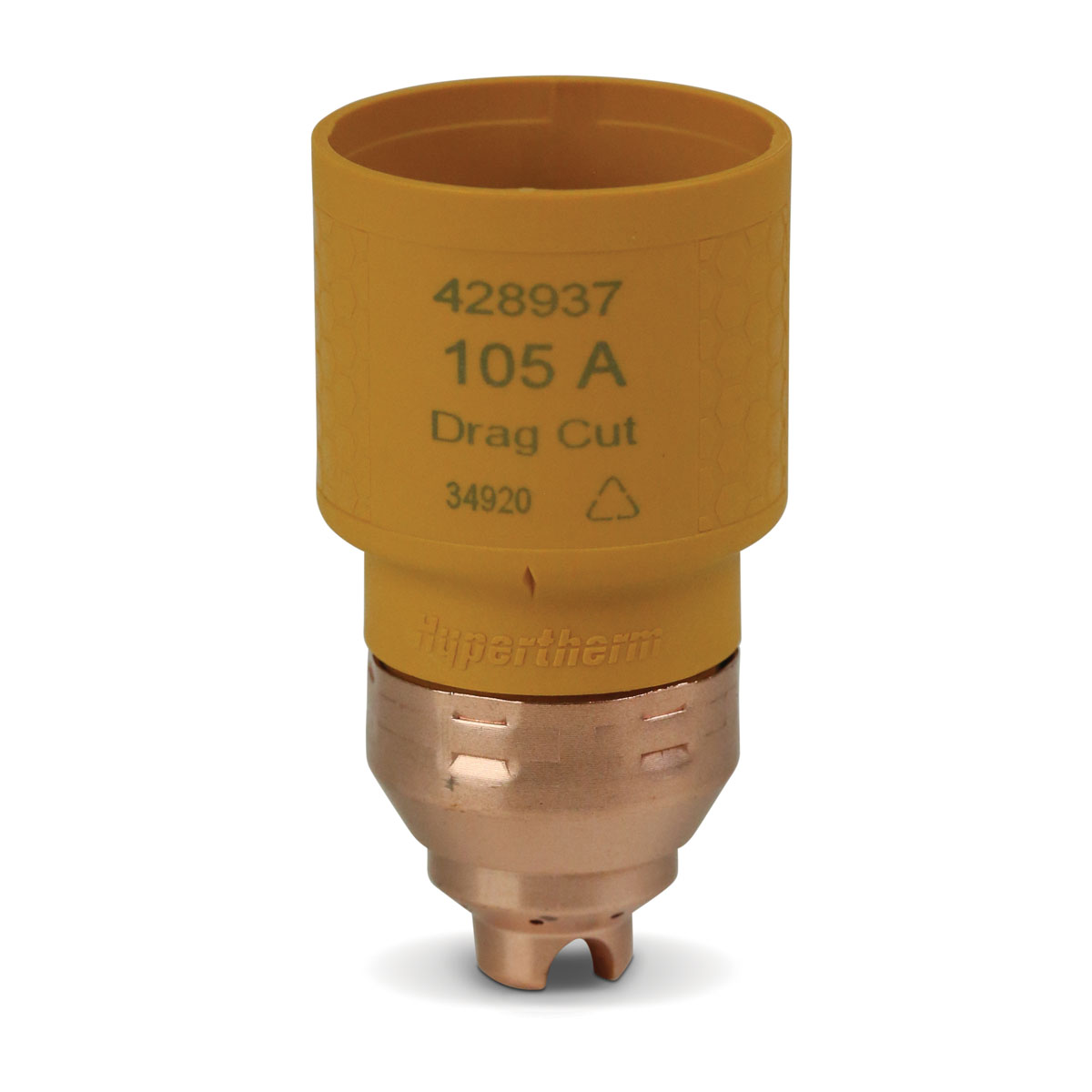

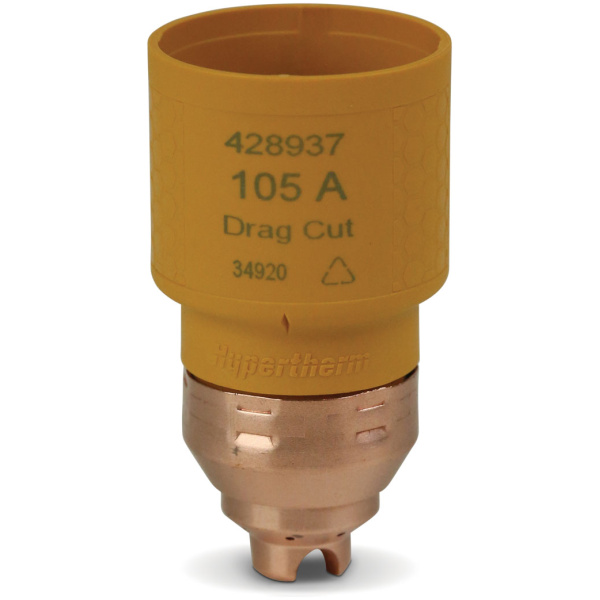

- Hypertherm Powermax 105 SYNC Hand Consumable Starter cartridge
- Powermax Operating Manual, Safety Manual, Quick Setup Card and Setup DVD
Machine description
The Powermax105 SYNC plasma system has the duty cycle and performance needed for tough industrial cutting and gouging jobs. Delivering superior cut capabilities on 32 mm (1-1/4″) thick metals, it also offers the latest technological innovations, such as SmartSYNC technology, auto power control depending on cartridge installed. Varying torch styles provide versatility for hand cutting, portable automation, X-Y table cutting, and robotic cutting and gouging (available on CPC port machine only in addition with a machine torch)
Features include
Maximum productivity
- Finish jobs faster with cut speeds three times greater than oxyfuel
on 12 mm mild steel. - Spend less time on grinding and edge preparation due to superior cut and gouge quality.
- Simplified operation minimizes downtime, troubleshooting, waste and training time.
- Time-saving torch controls allow the operator to adjust the amperage on the fly and change consumables and
applications without returning to the power supply. - Tackle a wide range of jobs with easily interchangeable torch styles and application-specific Hypertherm cartridge consumables for various types of cutting
and gouging
Low operating costs
- Advanced cartridge consumable design provides up to twice the life for hand cutting and improved quality over life
in mechanized setups compared to standard consumables. - Reduce costs with long consumable life and more uptime.
- Access cartridge data for performance tracking, analysing usage patterns.
Technical data:
- Mains supply: 400 V, 3-PH, 50–60 Hz
- Input power (kVA): 30
- Amperage Range (Amps): 30A – 105A
- Recommended gas inlet flow rate/pressure (Bar) : 5.9
- Duty Cycle: 80% @ 105 A & 100% @ 88 A
- Protection/Insulation Class: IP23S
- Dimensions (mm): 592 x 274 x 508
- Weight (kg): 39.4
*3 year warranty on power source
*1 year warranty on torch
Supplied with 32amp 415v plug
Data Sheet
Hypertherm Powermax SYNC Product Info
