Description

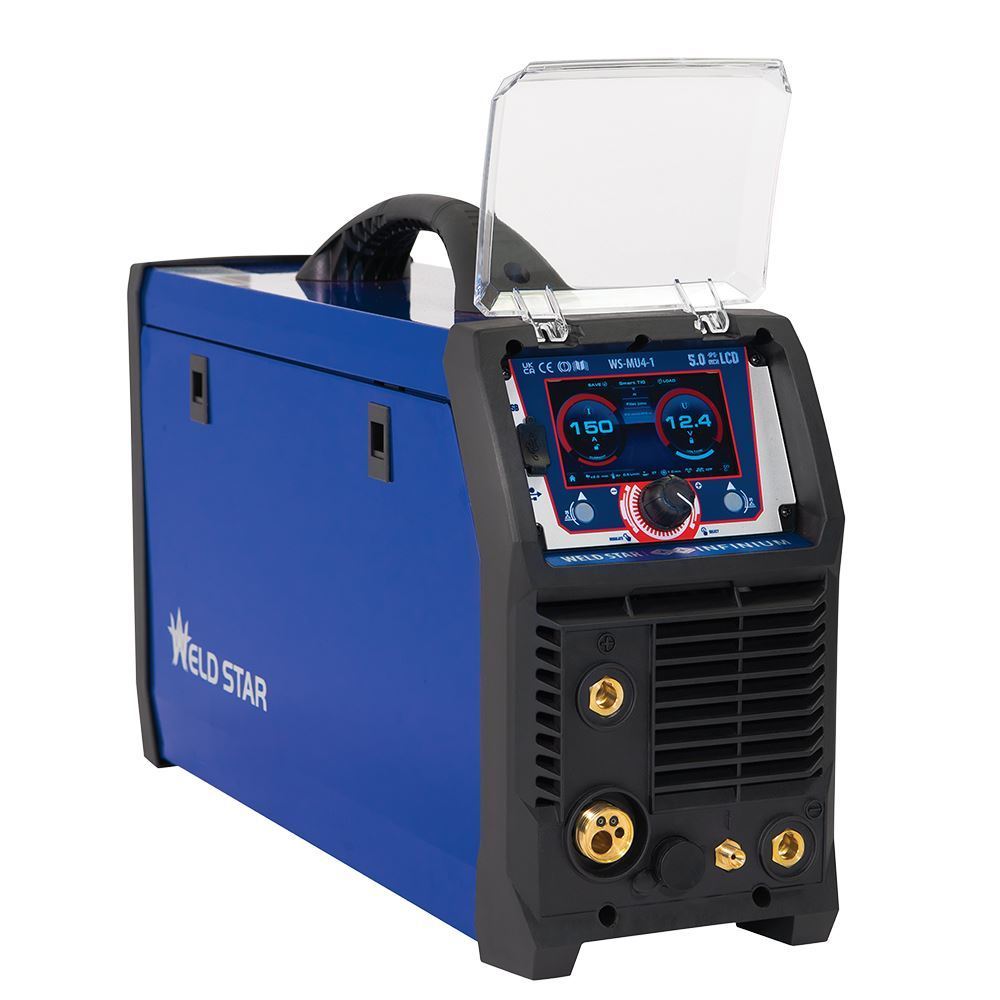

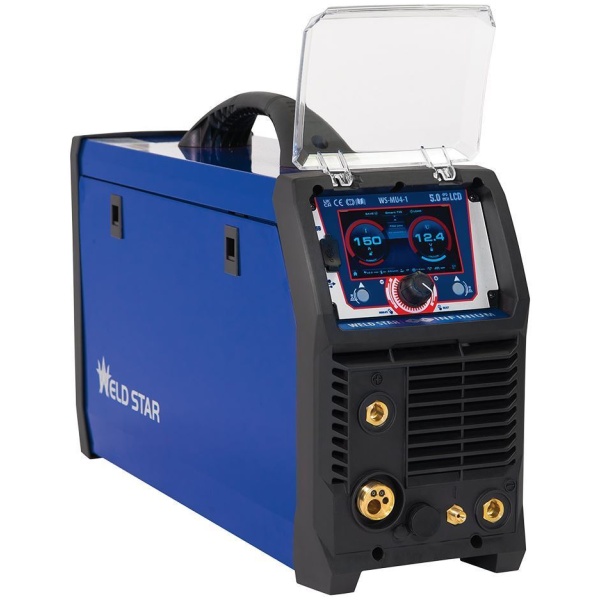

Weldstar 4 in 1 Muilti Process Welder
Package includes:
- Weldstar 200amp 4in1 Inverter
- MB25 torch and earth return lead
- WP17 4mtr tig torch
- MMA/Electrode holder lead
- Gas hose and regulator
Machine description
The Weld Star MU4-1 is a true multi-process inverter welder offering professional welding performance in all processes and is the first of its kind to include pulse technology in MIG, TIG and MMA, making it one of
the most versatile machines on the market today. It has been designed to incorporate the most advanced features and technology offering the operator a user-friendly interface via the 5” true colour LCD display.
Features include:
- Multi function MIG/MAG (pulse &synergic)/MMA/TIG (AC/DC
- PFC technology offering multiple advantages such as energy efficiency and wide range input voltage from 95Vac – 265Vac
- Automatic dual voltage input detection
- Generator friendly
- Wire diameter: 0.6, 0.8, 1.0mm
- Ability to save up to 10 stored programmes for quick set up
- With synergic MIG/MAG, welding parameters can be automatically selected based on material thickness and voltage with synergic curves for common materials and wires
- Built in TIG welding features such as HF or Lift TIG, pre/post flow gas times, 2T/4T, slope up/down and pulse, all to ensure excellent TIG welding characteristics in both AC and DC
- DC and AC MMA suitable for a wide range of electrodes
- Smart fan – reduces power consumption and intake of dust and fumes
- Available with a range of accessories including on torch remote, foot pedal and 2 wheel trolley
Technical Specifications:
- Mains supply: AC95V – 230V – 50/60Hz
- Input power (kVA): 110V – 4.5 230V – 7.5
- Amperage Range (Amps): 110V 10 – 140 230V 5A – 200A
- Voltage Range (Volts): 15.5V – 24V
- Duty Cycle: 200Amps @ 30%
- Power Factor: 0.99
- Protection/Insulation Class: IP23S
- Dimensions (mm): 620 X 220 X 430
- Weight (kg): 20
*5 year warranty
Supplied with 16amp 230v plug
